Λεπτομέρειες:
|
Μέγεθος: | 1/2» σε 8» | Τύπος: | μι |
---|---|---|---|
Νήμα: | BSP/NPT/DIN2999 | Υλικό: | Ανοξείδωτος χάλυβα AISI 304 & 316/pp/νάιλον/αλουμίνιο/ορείχαλκο |
Υλικό συμπιεσμάτων: | NBR/EPDM/FSK/SILICONE | Εξοπλισμός: | Κέντρο Επεξεργασίας CNC, CNC Lathe, κλπ. |
Φινίρισμα επιφάνειας: | Αμεμπτος | Πίεση εργασίας: | 100 έως 250 psi |
Πρότυπο: | MIL AA-59326 / EN14420-7 | Εφαρμογή: | Βιομηχανίες πετρελαίου, χημικής, ναυπηγικής, νερού και φυσικού αερίου |
Description
The Stainless Steel Camlock Coupling, crafted through precision investment casting, ensures precise and stable connections with its one-piece molded structure. Made from high-quality 316/304 stainless steel, it combines excellent chemical resistance and high-temperature performance, adapting to diverse industrial environments. The precision structure enables rapid installation and removal within seconds while meeting international safety standards, making it a reliable choice for fluid transmission applications.

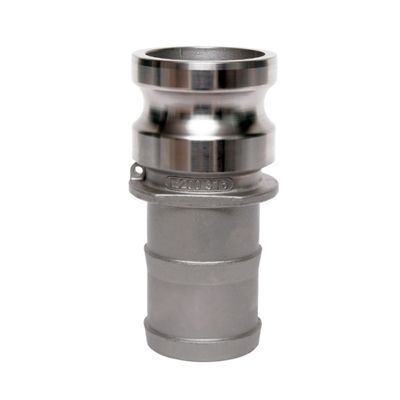

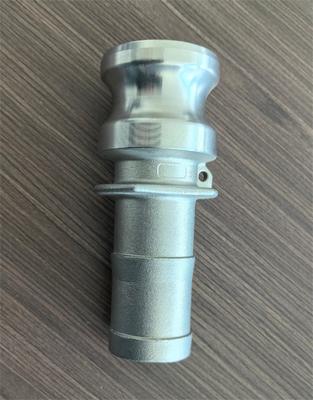

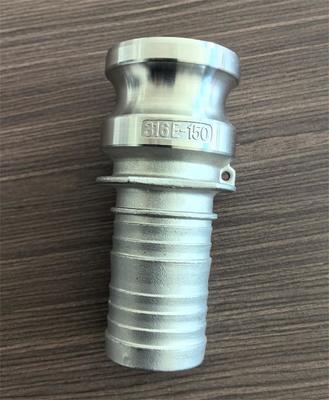

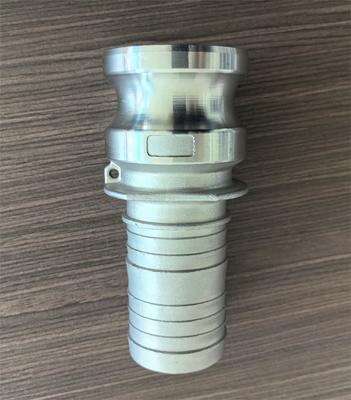

Type E (Male Adapter X Hose Shank)
The Type E Stainless Steel Camlock Coupling is the core component that forms the male end of a hose assembly. It features a male adapter on one end and a hose shank on the other. This design is intended to permanently convert a hose into a standard male adapter end, making it a key component for creating a complete quick-connect hose assembly.
Features
Working pressure:
Size (inch) | 1/2" | 3/4"- 2" | 2-1/2" | 3" | 4"- 6" |
Working pressure (PSI) |
150PSI |
250PSI | 225PSI | 200PSI | 100PSI |
Advantages
Applications
Different types
We offer eight types of Stainless Steel Camlock couplings.
To learn more, please click the link beneath the picture.
|
|
|
|
|
|
|
|
Our Advantages
